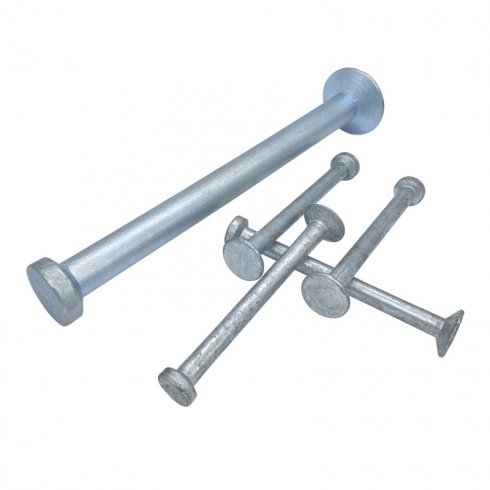

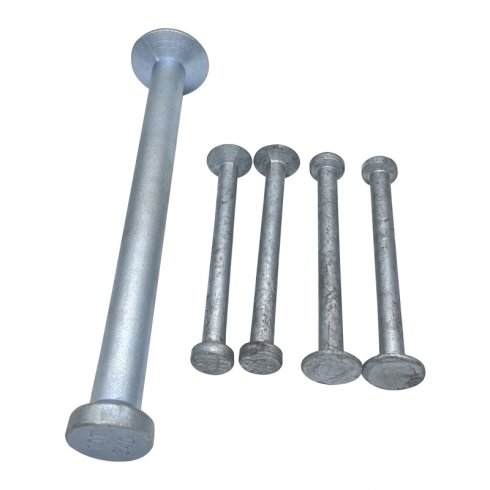

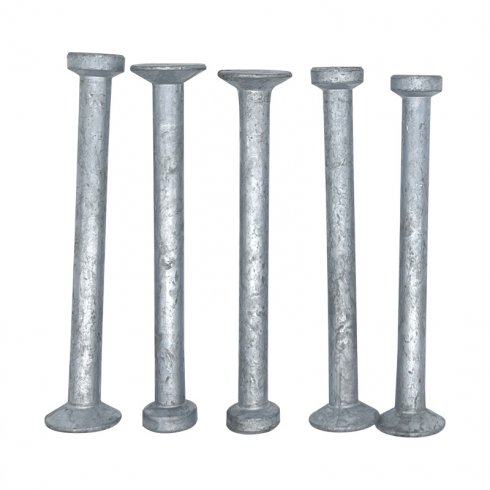

Spherical Head Lifting Anchors

Spherical Head Lifting Anchors

Features:

Our range of Spherical Head Lifting Anchors stands as a crucial component within the realm of Precast Concrete Accessories, also known as Dog Bone Lifting Anchors. Employing hot die forging in our manufacturing process ensures superior quality. Available in stainless steel and Q345R variants, with optional galvanization or anti-rust oil coating, these anchors are tailored to diverse needs. Rigorous Safety Factors testing, surpassing thrice the standard, precedes the boxing of each anchor, guaranteeing utmost reliability.

Our dedicated service team is committed to providing comprehensive assistance, expediting the delivery of high-quality Spherical Head Lifting Anchors. Certified with CE and rigorously inspected by TUV and SGS, our products meet stringent international standards. With a global presence spanning over 100 countries and regions, our track record speaks for itself. Place your trust in us for prompt and dependable fulfillment of your order.

Inquire Now

Product parameters

1. Description

Strict Production Process:

Our technical team will formulate a complete production solution according to your order quantity,

delivery date, shipping method, etc. We will shorten the production cycle by optimizing the production process.

Advanced Production Equipment:

The factory's hot forging equipment is highly automated, and the processes of cutting,

heating, forming and trimming of raw materials are simpler and faster. Spherical Head Lifting Anchors can be done faster

Experienced Production Team:

Experienced workers can skillfully complete each process,

improve the production efficiency of the equipment,

increase the rate of finished products, and further shorten the production cycle of the order.

Thoughtful Freight Service:

We will actively help you find a more suitable freight company if you need it.

Our freight team can provide free consulting services to help you find safer and more cost-effective freight companies faster.

2. Detail Information

NAME	MATERIAL	20Mn2 / Q345D / CM490 / Stainless Steel / Customizable
HULK Metal Spherical Head Lifting Anchors	SURFACE TREATMENT	Raw Black / Electro-galvanized / Hot-dip Galvanized
	SAFETY FACTOR	≥ 3
	CERTIFICATE	ISO9001 / CE

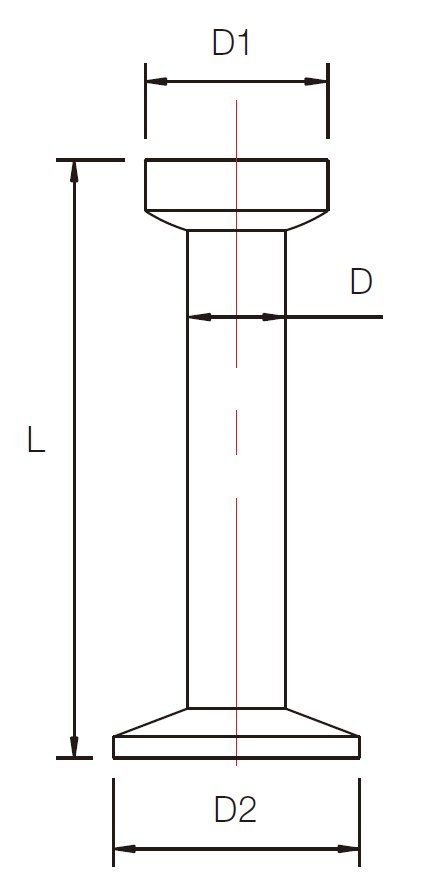

	SWL (tons)	CODE	LENGTH(mm)	D(mm)	WEIGHT(kg/pc)
	1.3	HM-P-013035	35	10	0.043
		HM-P-013040	40	10	0.046
		HM-P-013045	45	10	0.049
		HM-P-013050	50	10	0.052
		HM-P-013055	55	10	0.055
		HM-P-013065	65	10	0.061
		HM-P-013075	75	10	0.067
		HM-P-013085	85	10	0.072
		HM-P-013120	120	10	0.092
		HM-P-013170	170	10	0.122
		HM-P-013240	240	10	0.165
	2.5	HM-P-025045	45	14	0.112
		HM-P-025055	55	14	0.124
		HM-P-025065	65	14	0.135
		HM-P-025070	70	14	0.141
		HM-P-025075	75	14	0.146
		HM-P-025085	85	14	0.155
		HM-P-025090	90	14	0.163
		HM-P-025095	95	14	0.169
		HM-P-025100	100	14	0.175
		HM-P-025115	115	14	0.192
		HM-P-025120	120	14	0.197
		HM-P-025125	125	14	0.203
		HM-P-025140	140	14	0.214
		HM-P-025170	170	14	0.256
		HM-P-025210	210	14	0.3
		HM-P-025240	240	14	0.334
		HM-P-025280	280	14	0.38
		HM-P-025480	480	14	0.64
	4	HM-P-040055	55	18	0.24
		HM-P-040065	65	18	0.25
		HM-P-040070	70	18	0.26
		HM-P-040075	75	18	0.27
		HM-P-040080	80	18	0.28
		HM-P-040100	100	18	0.32
		HM-P-040110	110	18	0.34
		HM-P-040140	140	18	0.4
		HM-P-040150	150	18	0.42
		HM-P-040160	160	18	0.44
		HM-P-040170	170	18	0.46
		HM-P-040180	180	18	0.48
		HM-P-040210	210	18	0.54
		HM-P-040240	240	18	0.6
		HM-P-040340	340	18	0.8
		HM-P-040420	420	18	0.96
	5	HM-P-050055	55	20	0.273
		HM-P-050060	60	20	0.285
		HM-P-050065	65	20	0.296
		HM-P-050075	75	20	0.319
		HM-P-050080	80	20	0.332
		HM-P-050085	85	20	0.344
		HM-P-050090	90	20	0.355
		HM-P-050095	95	20	0.367
		HM-P-050100	100	20	0.379
		HM-P-050110	110	20	0.403
		HM-P-050120	120	20	0.442
		HM-P-050140	140	20	0.486
		HM-P-050150	150	20	0.51
		HM-P-050160	160	20	0.52
		HM-P-050165	165	20	0.532
		HM-P-050170	170	20	0.544
		HM-P-050180	180	20	0.568
		HM-P-050210	210	20	0.64
		HM-P-050240	240	20	0.71
HM-P-050250		250	20	0.735
HM-P-050300		300	20	0.85
HM-P-050340		340	20	0.95
HM-P-050480		480	20	1.28
HM-P-050540		540	20	1.42
HM-P-050680		680	20	1.76
7.5	HM-P-075085	85	24	0.566
	HM-P-075095	95	24	0.6
	HM-P-075100	100	24	0.62
	HM-P-075105	105	24	0.635
	HM-P-075120	120	24	0.68
	HM-P-075140	140	24	0.75
	HM-P-075150	150	24	0.79
	HM-P-075160	160	24	0.823
	HM-P-075165	165	24	0.84
	HM-P-075170	170	24	0.858
	HM-P-075200	200	24	0.96
	HM-P-075240	240	24	1.1
	HM-P-075300	300	24	1.31
	HM-P-075340	340	24	1.44
	HM-P-075540	540	24	2.15
	HM-P-075680	680	24	2.6
10	HM-P-100100	100	28	0.82
	HM-P-100110	110	28	0.85
	HM-P-100115	115	28	0.87
	HM-P-100120	120	28	0.9
	HM-P-100135	135	28	0.96
	HM-P-100140	140	28	0.985
	HM-P-100150	150	28	1.03
	HM-P-100160	160	28	1.08
	HM-P-100165	165	28	1.1
	HM-P-100170	170	28	1.12
	HM-P-100180	180	28	1.17
	HM-P-100200	200	28	1.27
	HM-P-100210	210	28	1.31
	HM-P-100220	220	28	1.36
	HM-P-100240	240	28	1.46
	HM-P-100250	250	28	1.5
	HM-P-100340	340	28	1.92
	HM-P-100500	500	28	2.67
	HM-P-100540	540	28	2.86
	HM-P-100650	650	28	3.38
	HM-P-100680	680	28	3.52
15	HM-P-150110	110	34	1.6
	HM-P-150120	120	34	1.67
	HM-P-150140	140	34	1.81
	HM-P-150160	160	34	1.95
	HM-P-150165	165	34	1.98
	HM-P-150180	180	34	2.09
	HM-P-150200	200	34	2.22
	HM-P-150210	210	34	2.3
	HM-P-150240	240	34	2.52
	HM-P-150300	300	34	2.94
	HM-P-150340	340	34	3.23
	HM-P-150400	400	34	3.65
	HM-P-150825	825	34	6.68
	HM-P-150840	840	34	6.79
20	HM-P-200100	100	38	1.9
	HM-P-200165	165	38	2.48
	HM-P-200180	180	38	2.61
	HM-P-200200	200	38	2.79
	HM-P-200240	240	38	3.15
	HM-P-200250	250	38	3.24
	HM-P-200300	300	38	3.68
	HM-P-200340	340	38	4.04
	HM-P-200500	500	38	5.46
	HM-P-200750	750	38	7.69
	HM-P-2001000	1000	38	9.92
32	HM-P-320200	200	50	5.66
	HM-P-320250	250	50	6.4
	HM-P-320260	260	50	6.57
	HM-P-320280	280	50	6.87
	HM-P-320320	320	50	7.5
	HM-P-320500	500	50	10.26
	HM-P-320700	700	50	13.35
	HM-P-320870	870	50	15.96
	HM-P-3201000	1000	50	17.97
	HM-P-3201200	1200	50	21.05
