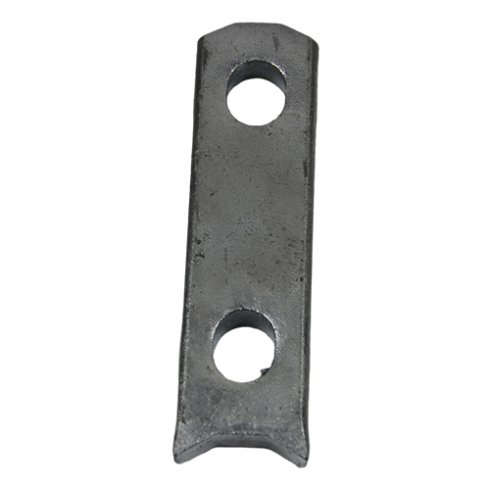

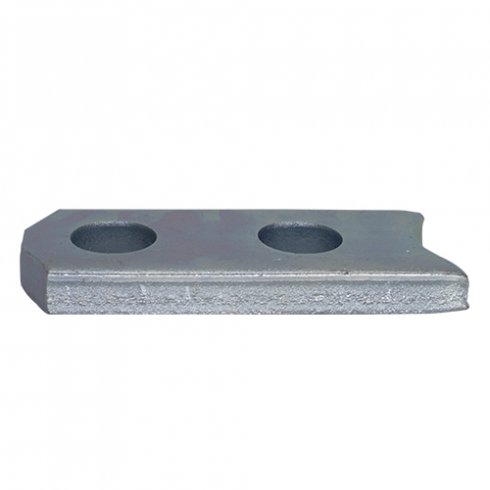

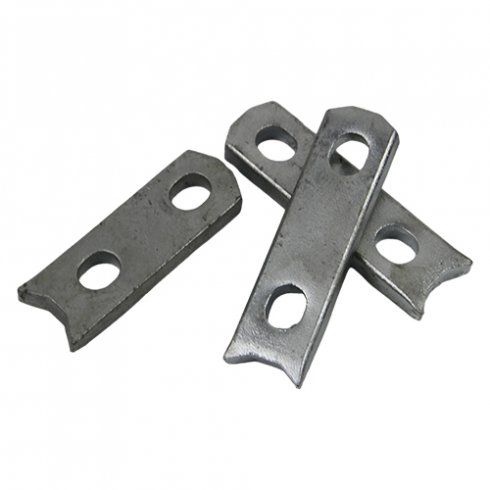

Our Two Hole Anchor is engineered to reliably achieve full safe working load capacities, even in thin concrete slabs or areas of low concrete strength, through the use of a tension bar in the secondary hole.
1. Description
1）Our Two Hole Anchor is engineered to reliably achieve full safe working load capacities, even in thin concrete slabs or areas of low concrete strength, through the use of a tension bar in the secondary hole. Customized longer anchors featuring additional holes are available upon request to accommodate specific project requirements.
2）Though functionally comparable to the Spread Anchor, installation of the Two Hole Anchor necessitates additional reinforcement as detailed in the provided installation instructions.
2. Detail Information
| NAME | MATERIAL | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable | |||||
| HULK Metal Transport Spread Anchors | SURFACE TREATMENT | Raw Color / Electro-galvanized / Hot-dip Galvanized | |||||
| SAFETY FACTOR | ≥ 3 | ||||||
| CERTIFICATE | ISO9001 / CE | ||||||

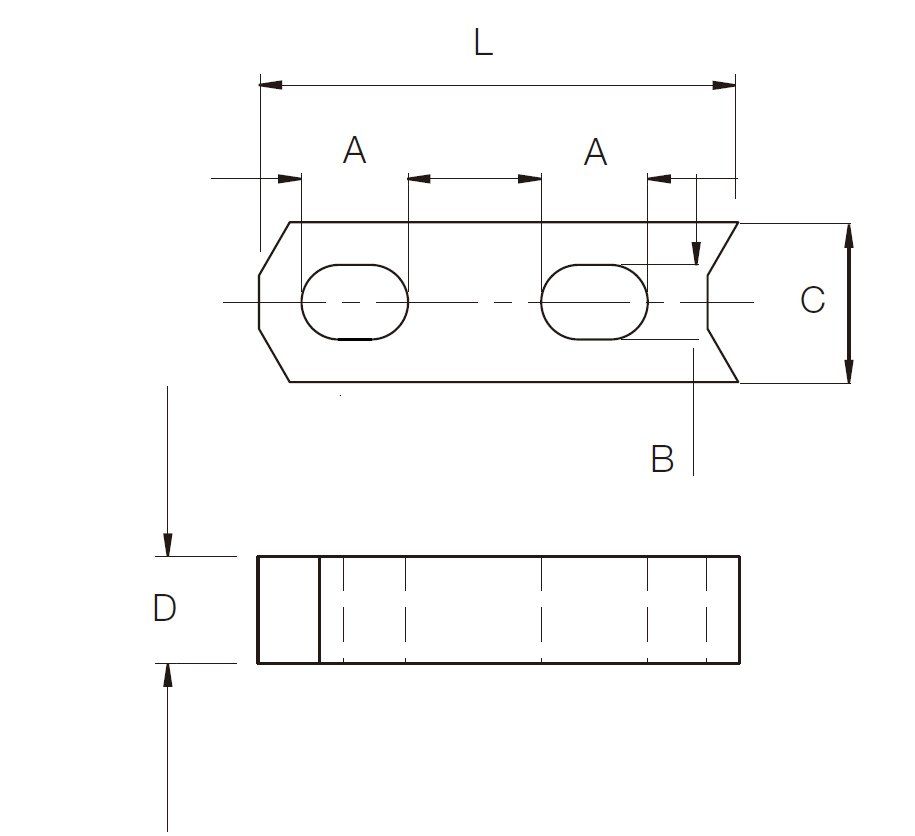

| SWL (tons) | CODE | LENGTH(mm) | A(mm) | B(mm) | C(mm) | D(mm) | |
| 2.5 | TSA025-05-090 | 90 | 20 | 14 | 30 | 5 |
| TSA025-06-090 | 90 | 20 | 14 | 30 | 6 | ||
| TSA025-08-090 | 90 | 20 | 14 | 30 | 8 | ||
| TSA025-10-090 | 90 | 20 | 14 | 30 | 10 | ||
| 5.0 | TSA050-10-120 | 120 | 22 | 18 | 40 | 10 | |
| TSA050-12-120 | 120 | 22 | 18 | 40 | 12 | ||
| TSA050-15-120 | 120 | 22 | 18 | 40 | 15 | ||
| 10 | TSA100-12-160 | 160 | 31 | 26 | 60 | 12 | |
| TSA100-16-160 | 160 | 31 | 26 | 60 | 16 | ||
| TSA100-20-160 | 160 | 31 | 26 | 60 | 20 | ||
| 26.0 | TSA260-20-240 | 240 | 45 | 35 | 80 | 20 | |
